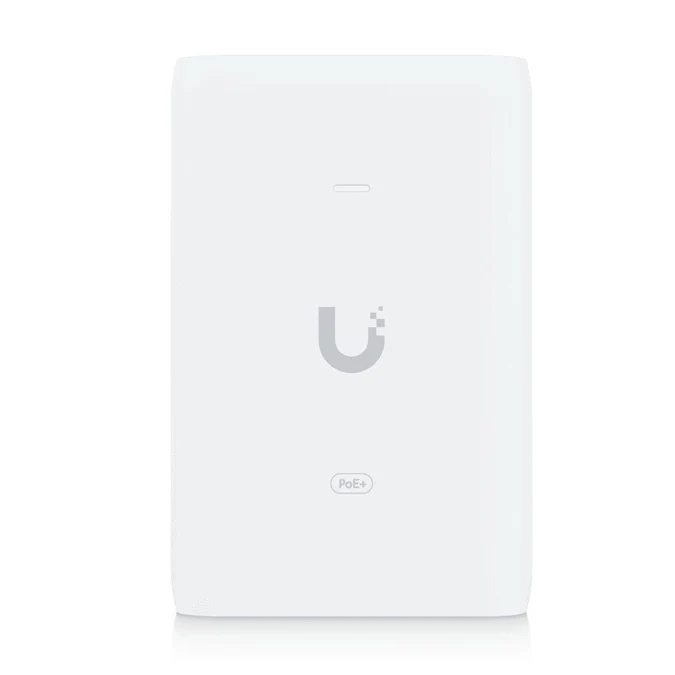

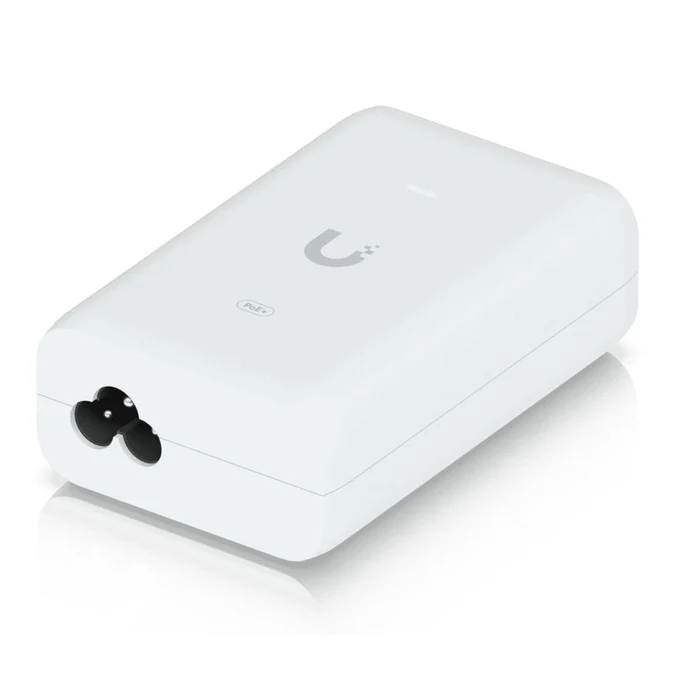

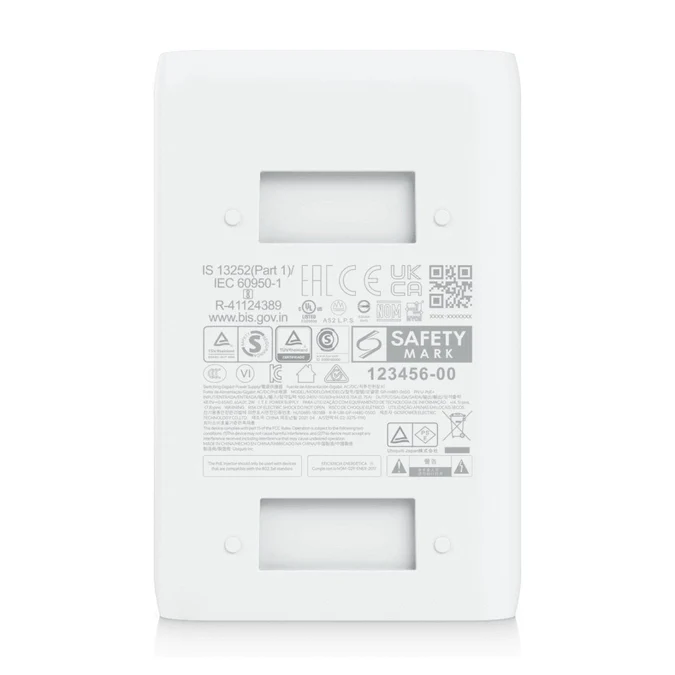

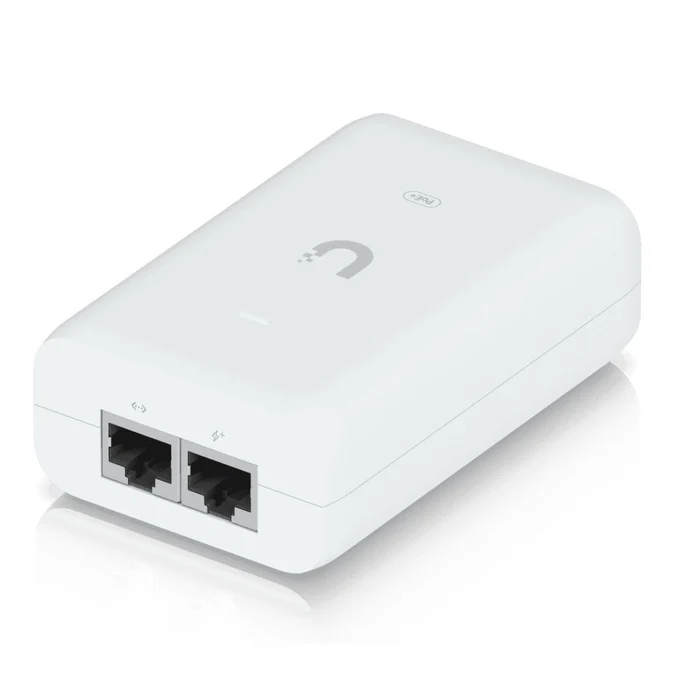

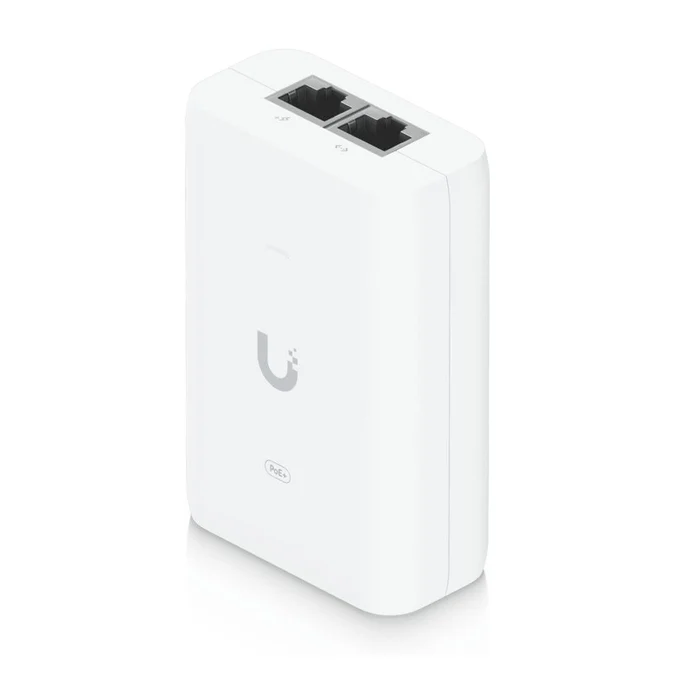

An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection. Features Delivers up to 30W of PoE+ Surge, peak pulse, and overcurrent protection Contains RJ45 data input, AC cable with earth ground, and PoE+ output
LAN activity indicator: No Gigabit LAN port: Yes Remote reset capability: No Reset button: No Rated voltage: 100—240V AC @ 50/60Hz Output voltage: 48V DC @ 0.65A Input current: 0.75A max. Inrush current: <100A peak at 26°C Efficiency: 87% Output ripple: 1% max. Switching frequency: 70 kHz max. Line regulation: ≤ 3% Load regulation: ≤ 5% 2-pair powering: Pins 4, 5 (+) and 7, 8 (-) 4-pair powering: No AC connector: IEC-320 C6 (Please note: Power cable not included) Data In / PoE: RJ45 shielded socket Surge protection: Difference and common mode Clamping protection: 11V data, 60V power Max. surge discharge: 1500A (8/20 μs) power Peak pulse current: 36A (10/1000 μs) data Shunt capacitance: <5 pF data Response time: <1 ns Dimensions: 93 x 62 x 35 mm Weight: 156 g Compatibility U6-LR UVC-G5-PTZ U6-IW UVC-AI-DSLR UVC-AI-Pro UDB-Pro UTP-G3-Touch-Wall UTP-TouchMax UA-Ultra
